Airseal

Meditrina Hysteroscope

Panther Stapling

Toumai Robot

Produkter & tilbehør

endo45
Stapling

Reach manual Stapler

ENDO RLCZ Reach Manual Stapler

Endoscopic linear cutting stapler

ENDO RLCZReach Manual Stapler

One manual handle, the whole Omnia reload range.

A new handle design with improved force-to-fire, three shaft lengths and articulation to 90°.

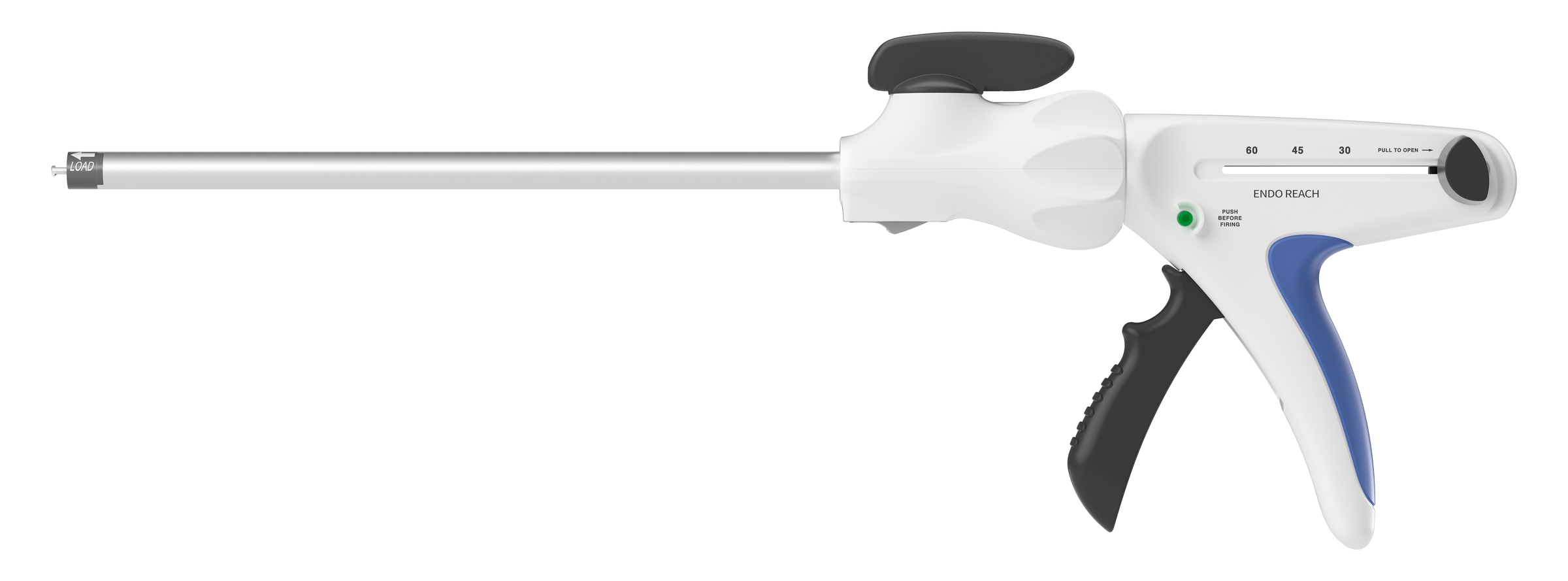

The ENDO RLCZ universal stapler seen from the side, shaft straight.
Articulation
45° · 90°
Shaft lengths
85 · 155 · 255 mm
Staple line
30 · 45 · 60 mm
Firings per instrument
Up to 25
New design
Omnia reload compatible
Improved force-to-fire

Articulation

45° and 90°

The jaw articulates to 45° and to 90°, for approaches a straight shaft cannot make.

The ENDO RLCZ with the jaw articulated forty-five degrees off the shaft.
45°

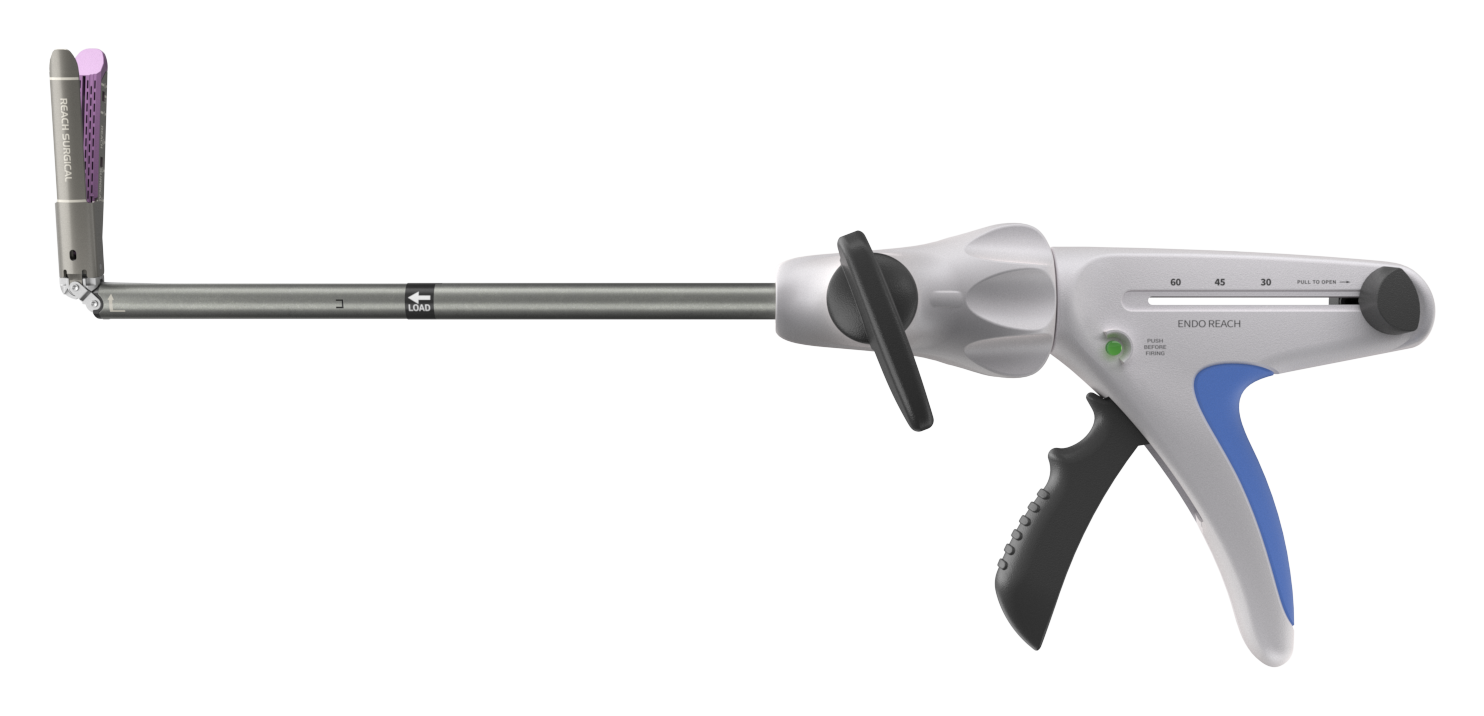

The ENDO RLCZ seen from the side with the jaw articulated ninety degrees off the shaft.
90°Maximum

Handle

Improved handle design

Improved force-to-fire, with everything the hand needs to reach kept on the top and rear of the handle.

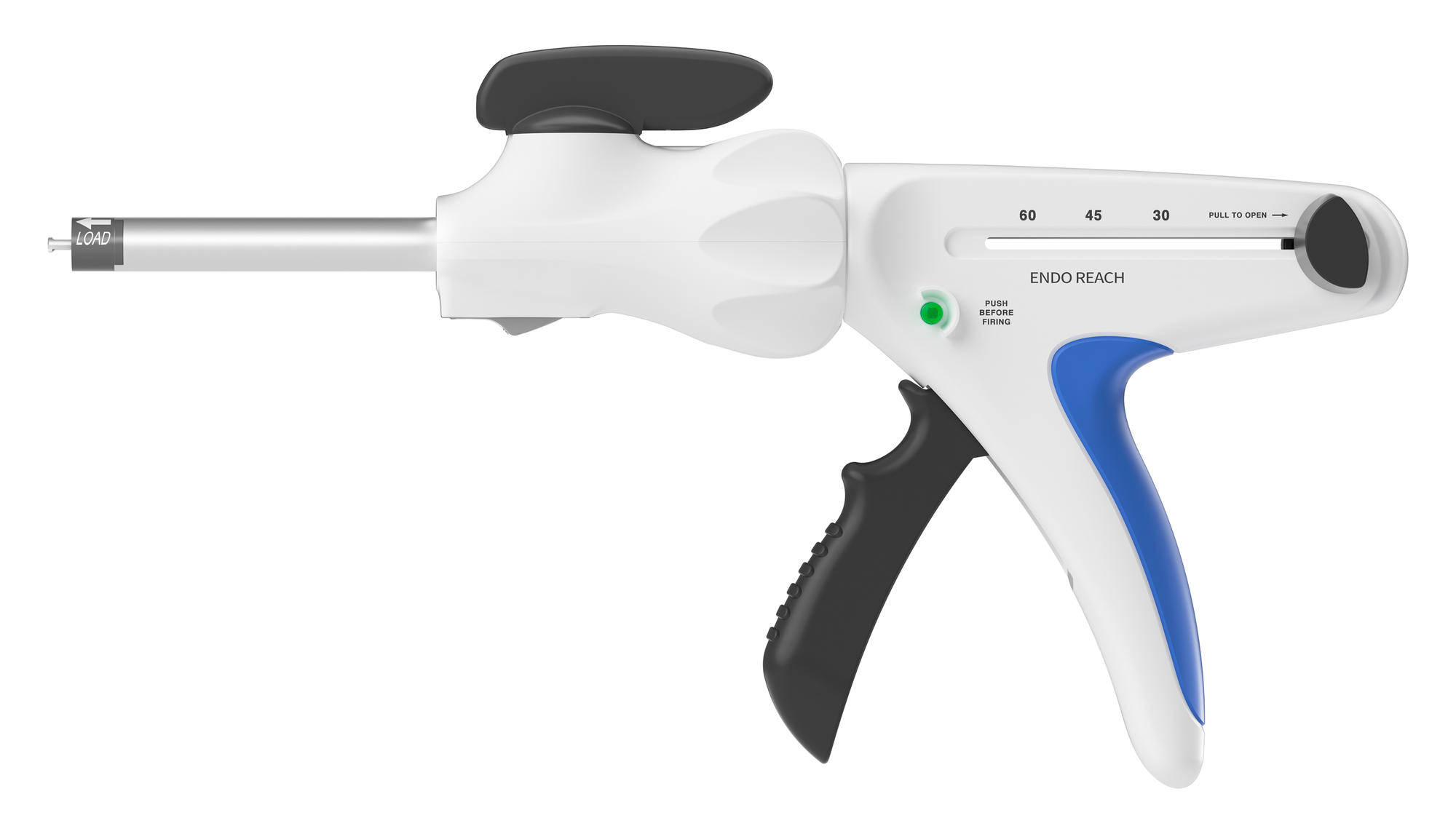

Side view of the ENDO RLCZ handle, showing the indicator window, the green safety button and the rear opening knob.
  • Staple line indicator — the window on the handle is marked 30, 45 and 60, so the loaded reload length reads at a glance.
  • Push before firing — the green safety sits above the trigger and is pressed before the firing stroke.
  • Pull to open — the knob at the rear of the handle opens the jaw.
  • Rotating shaft — the knob behind the housing turns the shaft to bring the jaw onto the tissue plane.

Reach

Three shaft lengths

The same handle across all three. Each instrument fires up to 25 times, three to a box.

85mm

ENDO RLCSZ — short shaft.

155mm

ENDO RLCZ — standard shaft.

255mm

ENDO RLCLZ — long shaft.

Documentation

Download material

ENDO RLCZ Reach Manual StaplerProduct brochure · PDF

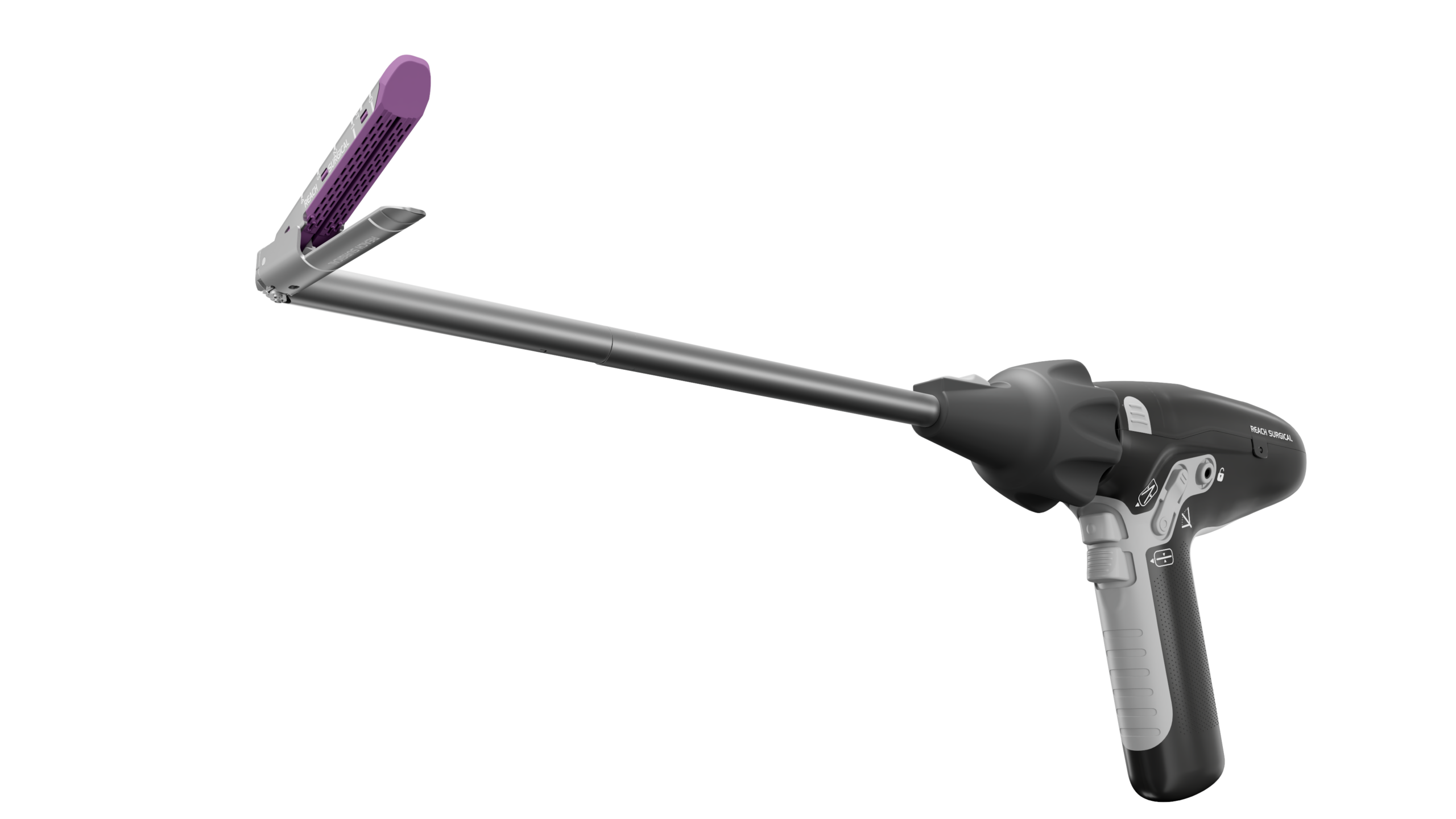

IRIS IDRM IDSTV45PUL 1
Stapling

IRIS Stapler

IRIS Powered Stapler

Reposable stapling system

IRISPowered Stapler

Redefining the reposable stapling system.

One reusable handle, a detachable power system and a fully disposable instrument.

The complete IRIS powered stapler: reusable handle, shaft and articulating jaw with a reload loaded.
Articulation
Up to 90°
Shaft lengths
100 · 150 · 250 mm
Instrument lengths
350 · 400 · 500 mm
Power system
Detachable

Tissue insight

Real Time Firing Curve

From segmented indication to continuous insight. The load is drawn as it happens, on the handle, in the surgeon's line of sight.

The firing curve display: a continuous load curve over a 0 to 60 millimetre scale.
Close-up of the IRIS handle with the firing curve shown on the built-in screen.
The screen sits on top of the handle, so the curve is visible without looking away from the field.

Real-time audible and visual feedback

See. Hear. Act with confidence.

Tissue condition alert Prevents unsafe firing.
Pre-compression A timed hold before firing, for optimal staple formation.
Articulation awareness Alert at 0° and at maximum angle.

Ultraflex™ 90

Extending access where it matters most

Conventional staplers are limited to 45°–55° articulation, which restricts access in confined anatomy. Ultraflex 90 reaches past that limit, enabling precise horizontal and lower distal transection.

The IRIS jaw shown at three articulation angles: forty-five, sixty-five and ninety degrees off the shaft.
45°
65°
90°
Maximum articulation

Ergonomics

Direction-True articulation

Turning right articulates right at any rotation of the shaft — no re-mapping, one-handed.

A gloved hand on the IRIS handle, thumb on the articulation controls.

Optimised weight and balance for precise control. The articulation controls sit under the thumb, so the hand never leaves the grip to change angle.

Detachable power

The battery leaves the handle

That single decision is what removes the charging downtime. Swap the pack, keep operating — one handle is enough.

The IRIS handle with the battery compartment cover opened.
The pack lifts out of the handle. No cable, no waiting for the instrument to charge.
Four battery packs standing in the IRIS charging cradle.
Four packs charge in the cradle while the handle stays in use.

Workflow

Reprocessing, in a minute

Powered by a sustainable platform. The bars below are drawn to the same scale.

Conventional reposable systems

60minutes

  • Battery built into the handle — charging downtime, and multiple handles to coordinate.
  • Reusable adapter and separate shell — re-sterilisation required before every case.
  • Operational complexity across the set.
IRIS

1minute

  • Detachable power system — quick battery swap, so one handle is enough.
  • UniShell adapter, fully disposable — single-step setup, no re-sterilisation.
  • Reusable handle on a sustainable platform.

Accessories

What stays in the department

Everything that is not thrown away after the case.

The IRIS reusable battery pack.
Reusable battery pack.
The IRIS four-bay battery charger.
Battery charger, four bays.
The IRIS manual override tool.
Manual override tool.

Documentation

Download material

IRIS Powered StaplerProduct brochure · PDF
Related products

More from Ferdinand Medical

Related products

Energy Platform
Energy Platform
AirSeal
AirSeal
Reach Manual Stapler
Reach Manual Stapler
Omnia Stapler
Omnia Stapler
omniainstrument (1)
Stapling

Omnia Stapler

Powered stapling platform

iReach Omnia

Powered articulating staplers, built for reach.

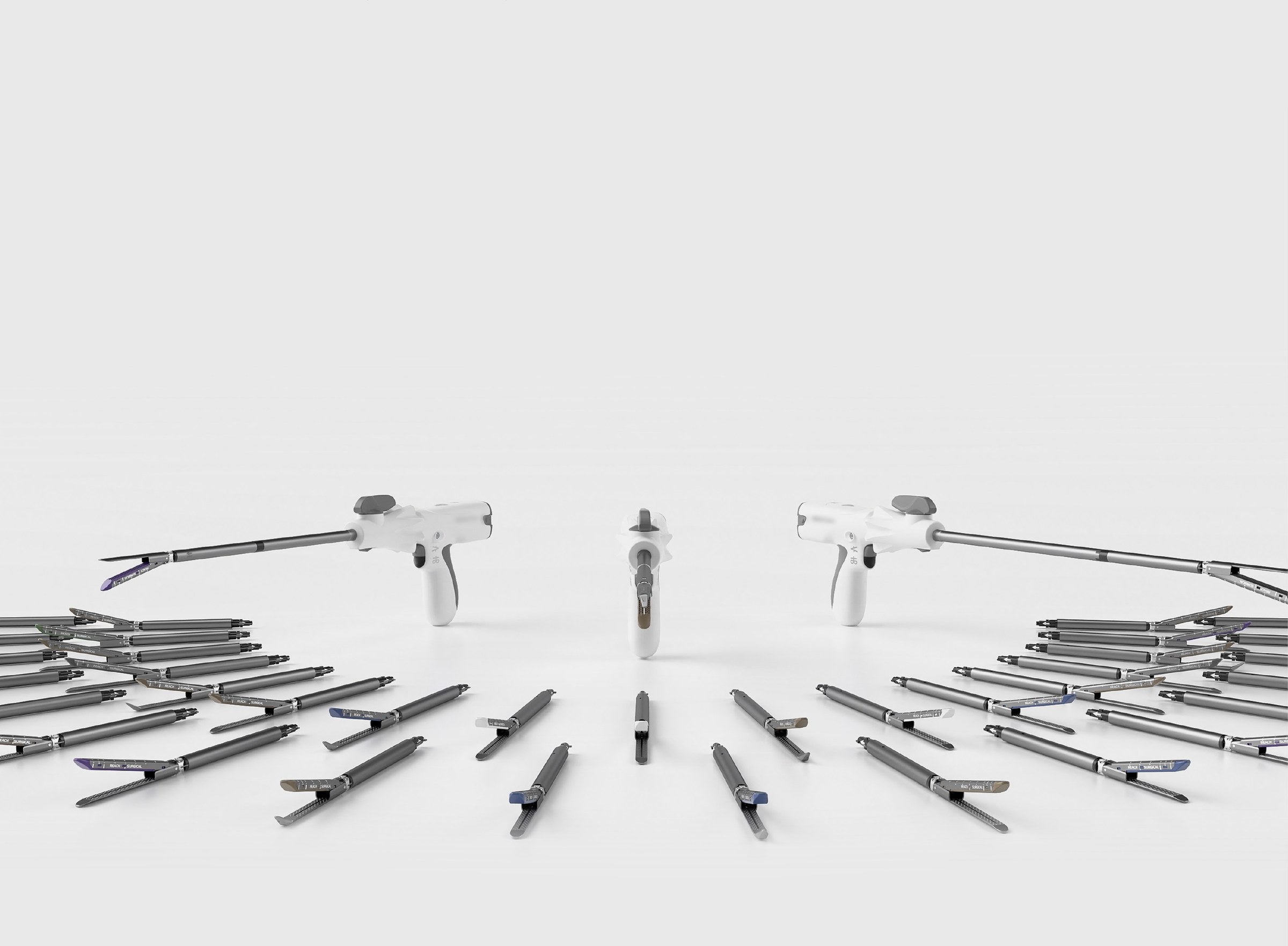

The iReach Omnia platform: two powered handles, a battery and the full range of reload cartridges arranged on a studio surface.
Articulation
45° standard · 90° Ultraflex
Shaft lengths
85 · 155 · 255 mm
Reload lengths
30 · 45 · 60 mm

A powered stapling platform built around one handle.

The instrument

Five details that change the firing

  1. 01
    Intelligent reload recognitionThe chip applies model-specific compression and firing parameters automatically.
  2. 02
    Powered open and closeRemoves hand shake from jaw actuation; short-press for half closure.
  3. 03
    Short articulation joint45° of articulation on a shorter pivot, so the jaw reaches lower into narrow spaces.
  4. 04
    Fixed anvilA stable reference edge for locating vessels and reducing tension on the tissue.
  5. 05
    Progressive-height staplesStepped cartridge surface aids fluid extraction and tightens the staple line for perfusion.
iReach Omnia powered stapler, articulated, with a purple progressive-height reload loaded.

Ultraflex 90 · Reload range

The industry's first 90° articulating reload

90°of articulation

45° and 90° magazines

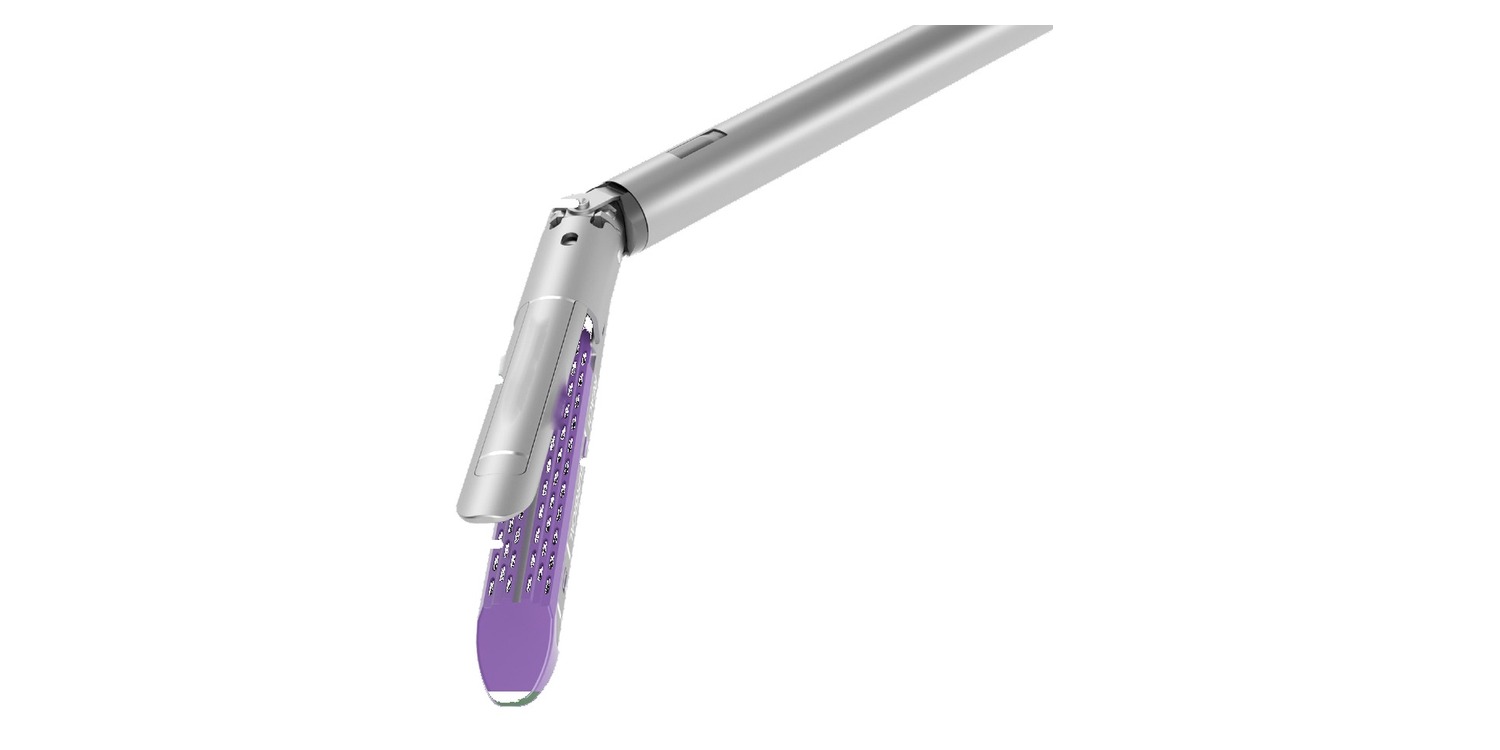

An Omnia reload on the stapler jaw, articulated to forty-five degrees.
45°Omnia reloads
  • Isometric and progressive staple heights
  • Six cartridge colours, thin through extra thick
  • Curved-tip variants (B suffix)

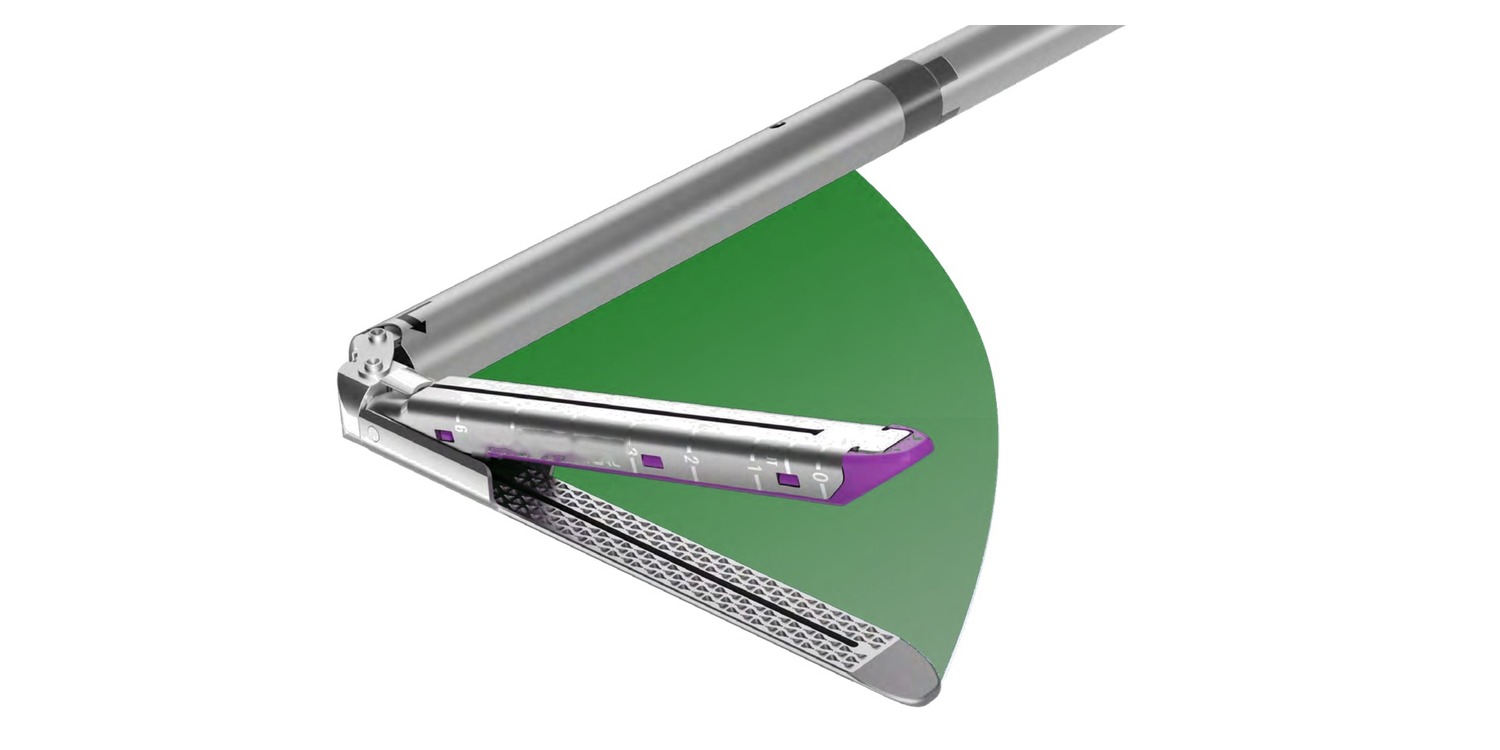

An Ultraflex 90 reload on the same jaw, articulated square to the shaft at ninety degrees.
90°Ultraflex 90 reloads
  • Progressive staple heights only
  • Three cartridge colours — tan, purple, black
  • Same handle, same 30/45/60 mm lengths

Lower reach in confined spaces

In lower anterior resection the working angle decides the margin.

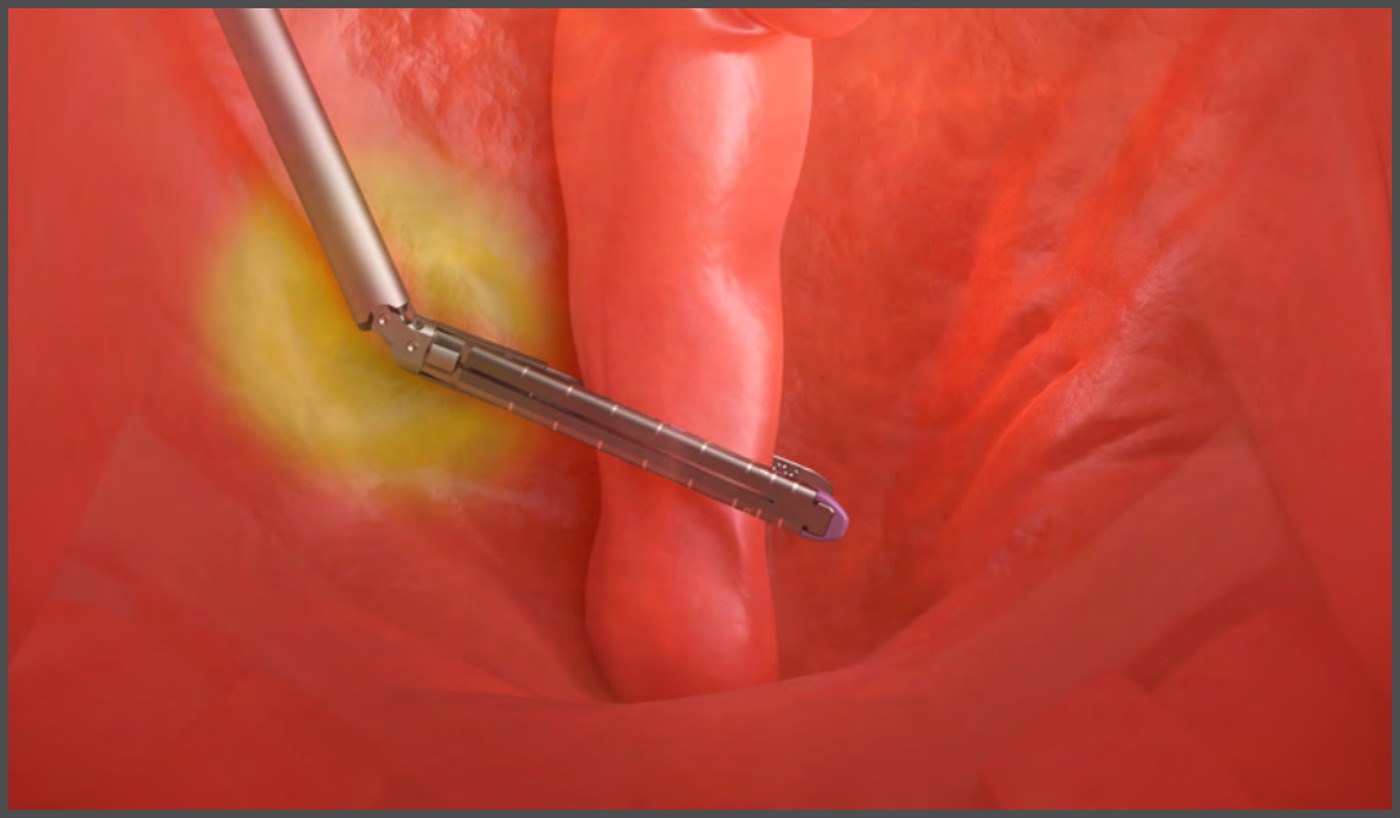

Endoscopic view: a conventional 45-degree reload approaching the rectum at an oblique angle, close to the tumour site.
Conventional reload · 45°
Limited positioning at low angles; the jaw is forced towards the tumour site.
vs

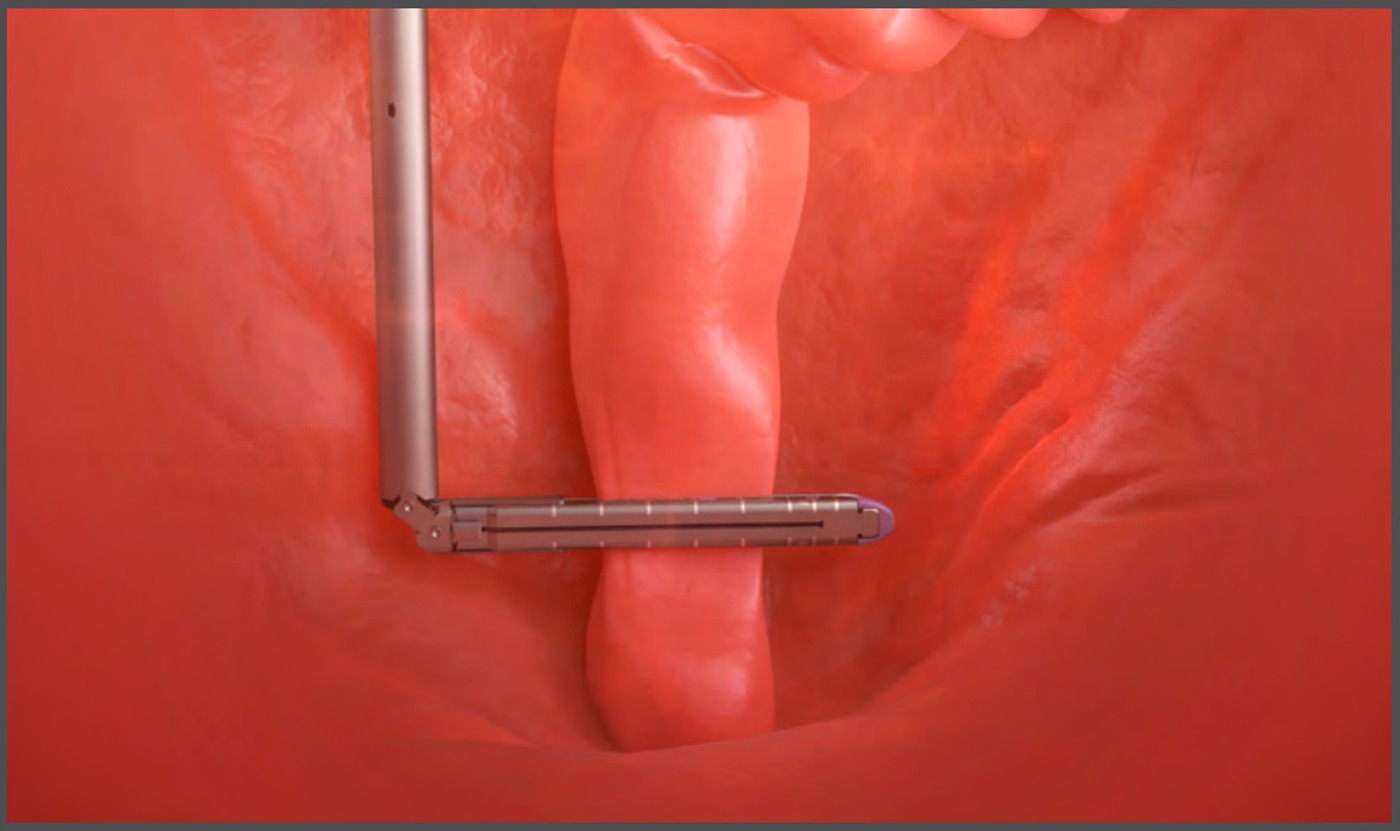

Endoscopic view: the Ultraflex 90 reload positioned square across the rectum, away from the tumour site.
Ultraflex 90
Square placement deeper in the pelvis, with a safe distance from the tumour maintained.

One firing instead of two

Crossing staple lines are where anastomotic leaks begin.

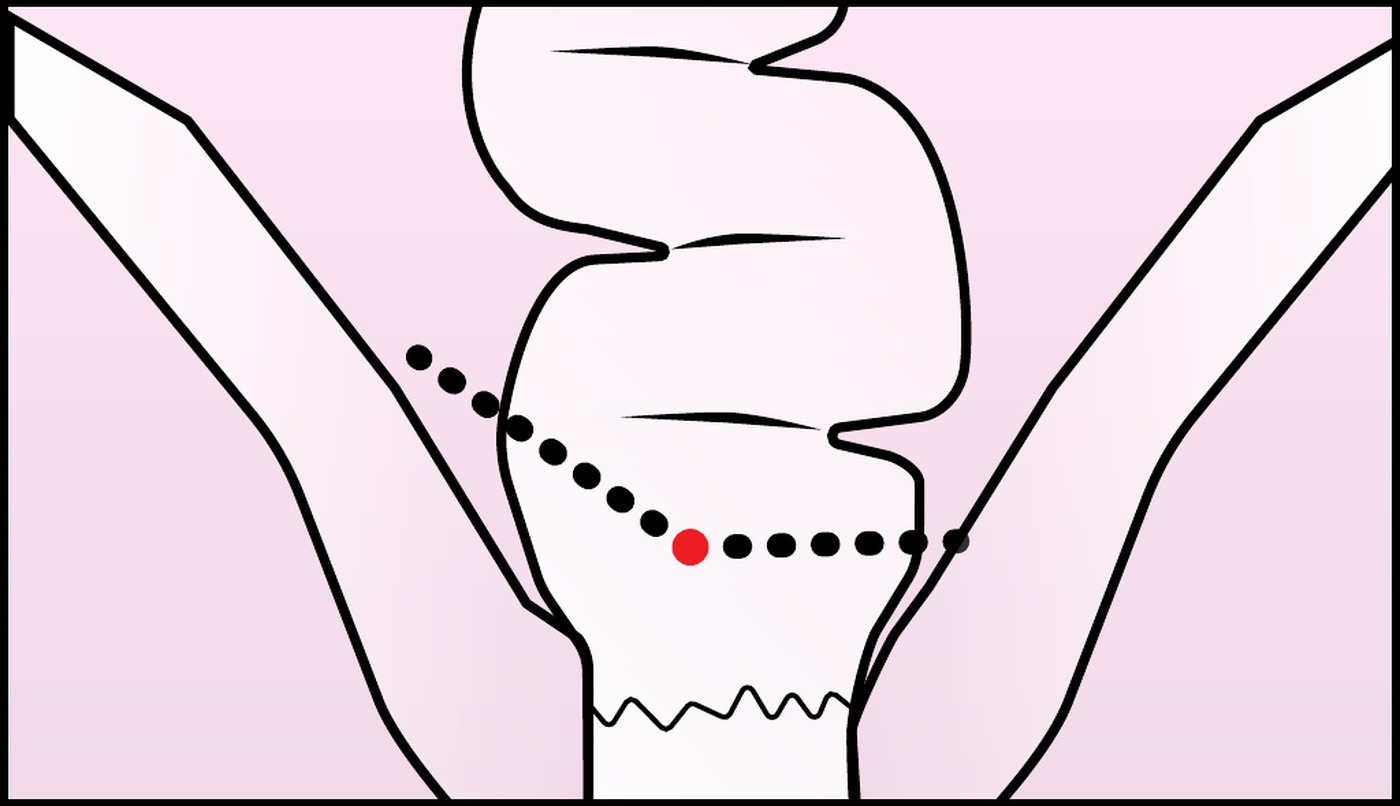

Diagram: two overlapping staple lines crossing at a point marked in red, the origin of leakage risk.
Multiple firings
Overlapping staple lines create a crossing point that raises leakage risk.
vs

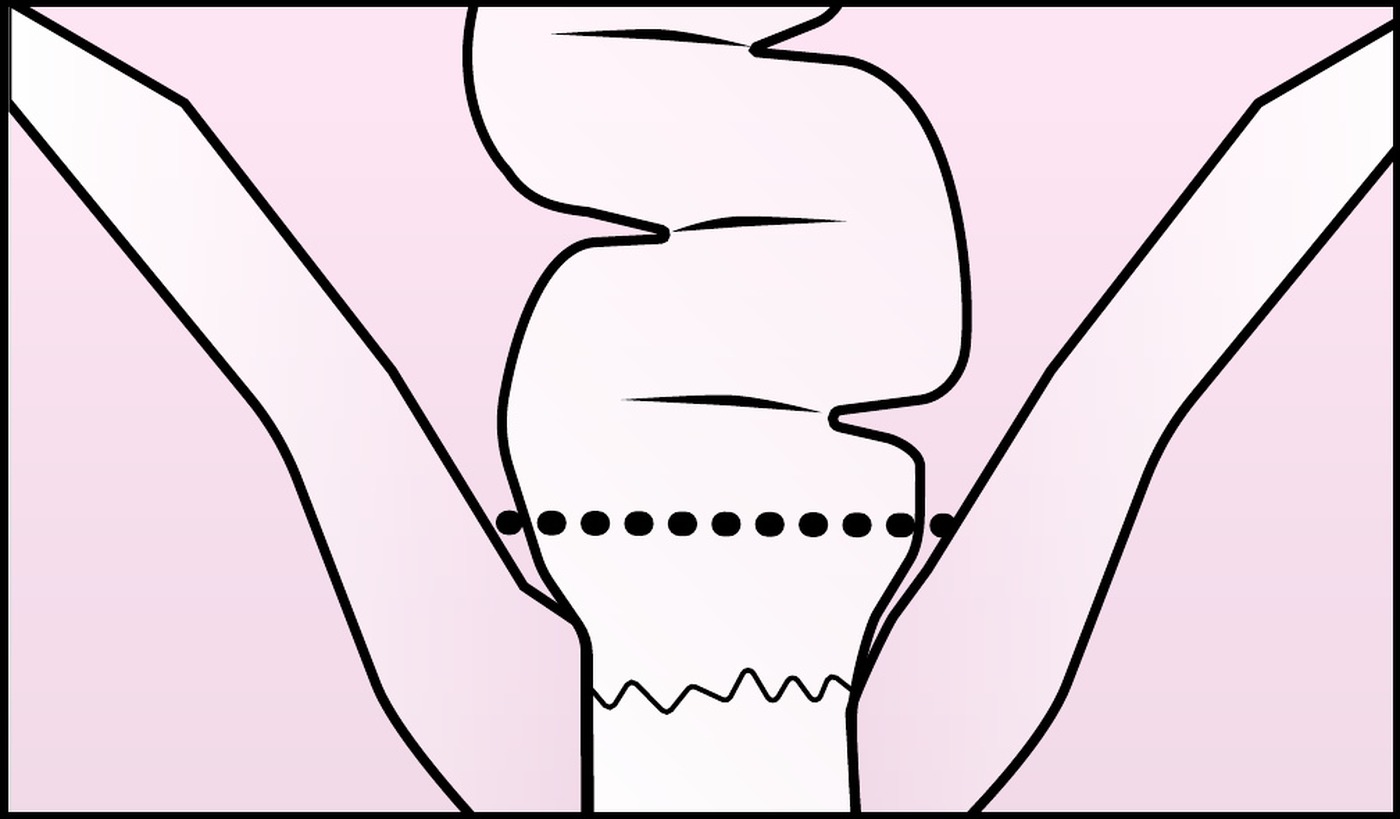

Diagram: a single continuous staple line across the rectum with no crossing point.
Single firing
One continuous staple line — no crossing, better staple line integrity.

Flexible across specialties

Easier tissue approximation, with less tension and more access.

ColorectalLow anterior resection
OesophagealGastric conduit
ThoracicSingle-port approaches

Documentation

Download material

iReach OmniaProduct brochure · PDF Ultraflex 90Reload brochure · PDF iReach Omnia staplersInstructions for use · PDF
