Produkter

Herunder ser du vores udvalg af produkter. Vælg en kategori eller søg specifikt.

Airseal

Meditrina Hysteroscope

Panther Stapling

Toumai Robot

Produkter & tilbehør

LaparoscopySmoke evacuationStaplingSuction Irrigation

AirSeal

AirSeal iFS

Intelligent insufflation

AirSealAirSeal iFS

The world’s first 3‑in‑1 insufflator.

AirSeal is unrivaled in its ability to maintain a stable pneumoperitoneum, constant evacuation of surgical smoke, and allows the surgeon to operate at low intra-abdominal pressure.

The AirSeal iFS insufflator.

Robotic solution

Pressure control is a safeguard, not a setting

Designed for stability. Proven to benefit patients.

In minimally invasive robotic surgery, pressure control isn’t just a setting. It’s a safeguard for your patients. AirSeal® delivers unmatched stability in pneumoperitoneum, allowing you to operate confidently at lower pressures without sacrificing visibility.

  • Stable pneumoperitoneum, regardless of leakage or use of suction.
  • Constant smoke evacuation with 0.01 µ ULPA filtration.
  • Valveless access through the AirSeal trocar.
The AirSeal trocar with its filter tube set.

Low pressure laparoscopy

Lower pressure, same view

Low-pressure laparoscopic surgery has previously been difficult due to limitations associated with conventional insufflators.

AirSeal compared with a conventional insufflator: peak airway pressure, end tidal CO2, arterial pressure and insufflation pressure.

The AirSeal System’s unique ability to maintain a stable pneumoperitoneum and constantly eliminate surgical smoke allows surgeons to operate at lower pressures without compromising exposure and visualization. By maintaining a stable pneumoperitoneum, constant elimination of surgical smoke and a valveless access through the AirSeal trocar, the AirSeal System has been shown to reduce operating time, increasing the efficiency associated with surgery.

See the difference

Low pressure surgery

AirSeal on the left, conventional insufflation on the right.

Three options

One system, three ways to run it

The filter set decides which mode you are in. The generator is the same.

01 3-lumen filter

AirSeal mode

By using AirSeal with the 3-lumen filter, you get the following benefits:

  • Optimised CO2 flow to maintain a stable pneumoperitoneum — regardless of leakage or use of suction.
  • Smoke evacuation and filtration with 0.01 µ ULPA filter.
  • Allows you to operate at lower intra-abdominal pressure (6–8 mmHg), which has many per- and post-operative benefits for patients.
02 Bifurcated, double-lumen

Smoke evacuation mode

Use AirSeal with a bifurcated, double-lumen filter set. This allows for high-flow insufflation and good smoke evacuation with filtration with 0.01 µ ULPA filter.

03 Single-lumen hose

Standard insufflation mode

Use AirSeal with a single lumen hose set for high-flow insufflation.

Documentation

Download material

AirSeal Robotic SolutionProduct brochure · PDF AirSeal SystemProduct brochure · PDF

Ferdinand Medical

See AirSeal in your own operating room

Contact us

More from Ferdinand Medical

Related products

IRIS Stapler
IRIS Stapler
Ener Reach Energy Platform
Ener Reach Energy Platform
Laparoscopic Instruments
Laparoscopic Instruments
Omnia Stapler
Omnia Stapler
clap hero
Laparoscopy

Laparoscopic instrument

Laparoscopic Instruments

Monopolar · single use · sterile

LaparoscopicInstruments

High quality. Precision. Reliable.

Everything the professional surgeon needs throughout a laparoscopic procedure. Cutting, grasping, dissecting and clamping in a single, consistent portfolio.

A C-LAP instrument: black 5 mm shaft, teal rotation wheel and a white ring handle.
Shaft length
330 mm
Port compatibility
5 mm
Energy
Monopolar
Supply
Single-use, sterile

The handle

One handle across the range

Every instrument in the family is built around the same intuitive handle, so the grip does not change when the task does.

Close-up of the C-LAP handle, with the teal rotation wheel and the ratchet lock.
  • Lightweight and well-balanced — comfortable across long laparoscopic procedures.
  • Comfortable handle — easy open and close, with a naturally located ratchet lock.
  • Free and simple jaw rotation — precise positioning without resistance.
  • Double hinge design — easy, precise jaw motion with maximum opening.

The C-LAP range

Six jaws, one shaft

The same 330 mm shaft and the same handle throughout. Only the working end changes.

C-CUT curved Metzenbaum scissors.
C-CUT
11 or 17 mm blades

Laparoscopic scissors, Metzenbaum, curved. Precise curved scissors for sharp and blunt dissection.

C-DISSECT curved Maryland dissector.
C-DISSECT
20 mm jaw length

Laparoscopic dissector, Maryland, curved. Designed for fine, controlled dissection.

C-GRASP atraumatic grasper with an 18 mm jaw.
C-GRASP
18 mm jaw length

Laparoscopic grasper, atraumatic, with ratchet. Ratchet lock for stable tissue holding.

C-GRASP atraumatic grasper with a 22 mm jaw.
C-GRASP
22 mm jaw length

The same atraumatic grasper in the longer jaw, for a wider bite on the same handle.

C-CLINCH clinch grasper.
C-CLINCH
22 mm jaw length

Laparoscopic grasper, clinch, with ratchet. For a secure, firm grip.

C-BAB Babcock forceps.
C-BAB
22 mm jaw length

Laparoscopic forceps, Babcock, with ratchet. For atraumatic handling of delicate tissue.

Single use, sterile

Opened, used, done

Every instrument is single-use and sterile. No reprocessing, no inconsistency from one case to the next, just reliable performance every time the tray is opened.

Ports
Standard 5 mm
Generators
Monopolar electrosurgical
Reprocessing
None

Documentation

Download material

Laparoscopic InstrumentsProduct brochure · PDF

More from Ferdinand Medical

Related products

Laparoscopic Clip Applier
Laparoscopic Clip Applier
LaparoVue
LaparoVue
Clip applier 10 mm
Laparoscopy

Laparoscopic clip applier

Two shafts, one clip-ligating
platform

The Clip Applier is available on a 10 mm and a 5 mm shaft. Same anti-drop jaw, same pitch-loading feed, same 330 mm working length — choose the shaft your port setup calls for.

01

Clip Applier 10 mm

10 mm shaft · L and M/L clips
Clip Applier 10 mm
A single-use laparoscopic clip applier on a 10 mm shaft, 330 mm working length. Five configurations cover L and M/L clip sizes with 10, 15 or 20 clips preloaded.
Anti-drop jaw structure
The jaw structure is designed to hold the clip in place while it is being positioned.
Pitch-loading clip feed
Pitch-loading clip feeding is designed for a lighter and more stable clip-ligating experience.
Interlock trigger
The trigger interlocks when the device runs out of clips.
Shaft
10 × 330 mm
Clip size
L and M/L
Capacity
10, 15 or 20 clips
Range
5 configurations
Clip Applier 10 mm - instrument overview
Instrument overview — jaw, shaft, rotation knob, counter window, trigger and handle.
Handle and counter window
Handle and counter window.
Jaw with clip
Jaw with clip seated in the anti-drop structure.

Available models

ModelSpecificationSizePackaging
CA-165Single-use, L Size, 10 Clips10 × 330 mm5 pcs/box, 4 boxes/carton
CA-166Single-use, L Size, 15 Clips10 × 330 mm5 pcs/box, 4 boxes/carton
CA-167Single-use, M/L Size, 15 Clips10 × 330 mm5 pcs/box, 4 boxes/carton
CA-168Single-use, M/L Size, 20 Clips10 × 330 mm5 pcs/box, 4 boxes/carton
CA-169Single-use, M/L Size, 10 Clips10 × 330 mm5 pcs/box, 4 boxes/carton
02

Clip Applier 5 mm

5 mm shaft · M/L clips
Clip Applier 5 mm
The same clip applier on a 5 mm shaft, 330 mm working length, in two preloaded clip counts.
Anti-drop jaw structure
The jaw structure is designed to hold the clip in place while it is being positioned.
Pitch-loading clip feed
Pitch-loading clip feeding is designed for a lighter and more stable clip-ligating experience.
Interlock trigger
The trigger interlocks when the device runs out of clips.
Shaft
5 × 330 mm
Clip size
M/L
Capacity
10 or 15 clips
Range
2 configurations
Open jaw, 5 mm shaft
Open jaw with the clip held in the anti-drop structure.
Open jaw.
Handle and counter window.

Available models

ModelSpecificationSizePackaging
CA-567Single-use, M/L Size, 10 Clips5 × 330 mm5 pcs/box, 4 boxes/carton
CA-568Single-use, M/L Size, 15 Clips5 × 330 mm5 pcs/box, 4 boxes/carton

Clip-ligating platform

Laparoscopicclip applier

Two shafts, one clip-ligating platform.

Available on a 10 mm and a 5 mm shaft. Same anti-drop jaw, same pitch-loading feed, same 330 mm working length — choose the shaft your port setup calls for.

Laparoscopic clip applier: white handle, straight shaft and clip jaw.
Clip Applier 10 mm L · M/L Clip Applier 5 mm M/L
Shafts
10 mm · 5 mm
Working length
330 mm
Clip sizes
L and M/L
Configurations
7 in total

The platform

Three things both shafts share

The jaw, the feed and the trigger are identical across the 10 mm and the 5 mm instrument. Only the shaft diameter and the clip load differ.

Anti-drop jaw structure The jaw structure is designed to hold the clip in place while it is being positioned.
Pitch-loading clip feed Pitch-loading clip feeding is designed for a lighter and more stable clip-ligating experience.
Interlock trigger The trigger interlocks when the device runs out of clips.
01

Clip Applier 10 mm

10 mm shaft · L and M/L clips

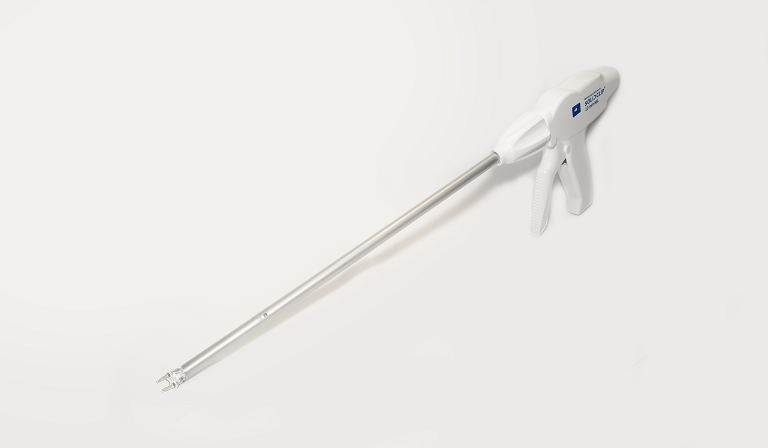

Clip Applier 10 mm, full instrument.

A single-use laparoscopic clip applier on a 10 mm shaft, 330 mm working length. Five configurations cover L and M/L clip sizes with 10, 15 or 20 clips preloaded.

Shaft
10 × 330 mm
Clip size
L and M/L
Capacity
10, 15 or 20
Configurations
5

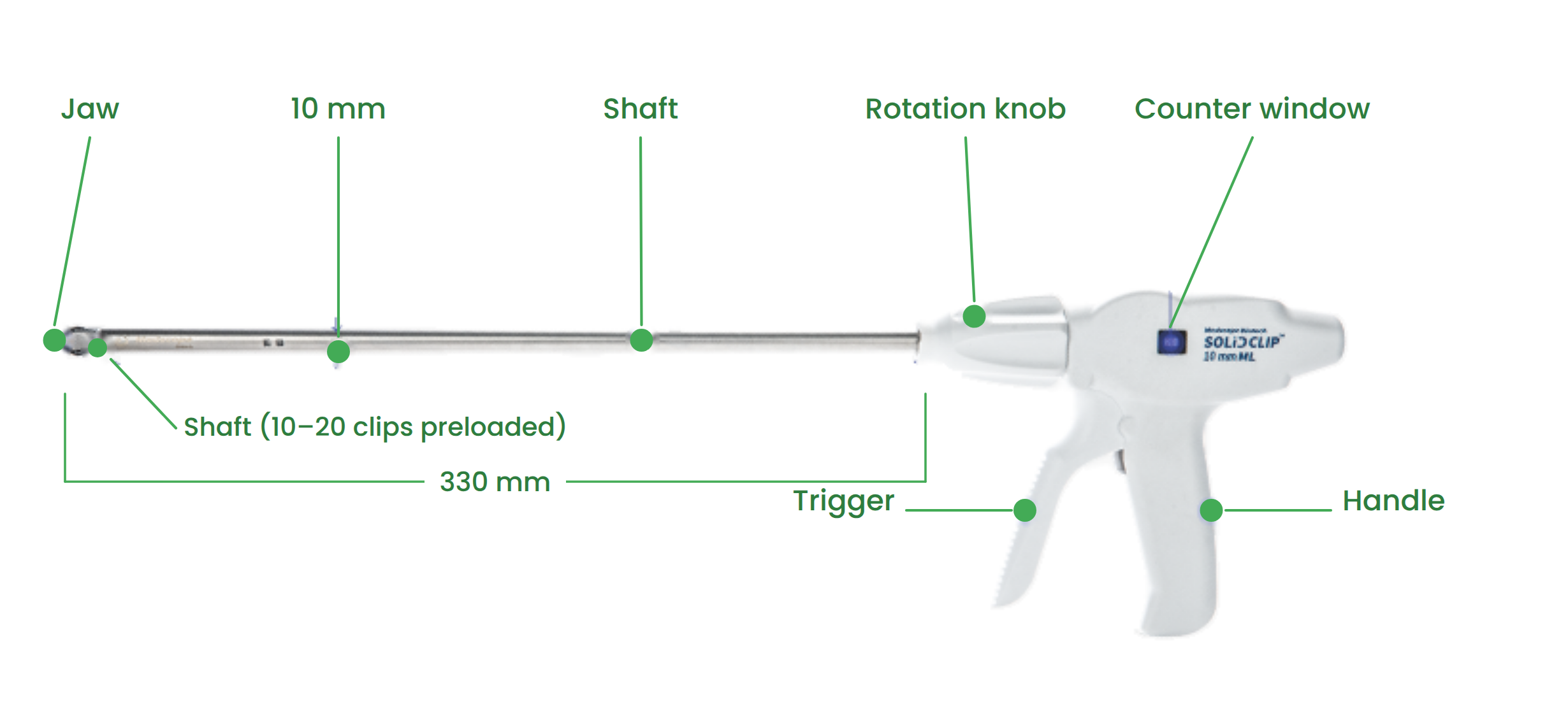

Clip Applier 10 mm with the jaw, shaft, rotation knob, counter window, trigger and handle marked.
Instrument overview — jaw, shaft, rotation knob, counter window, trigger and handle.

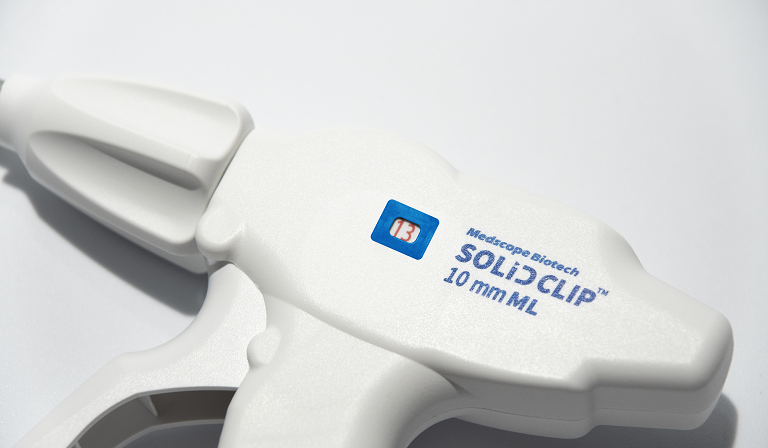

Handle and counter window, 10 mm instrument.
Handle and counter window.

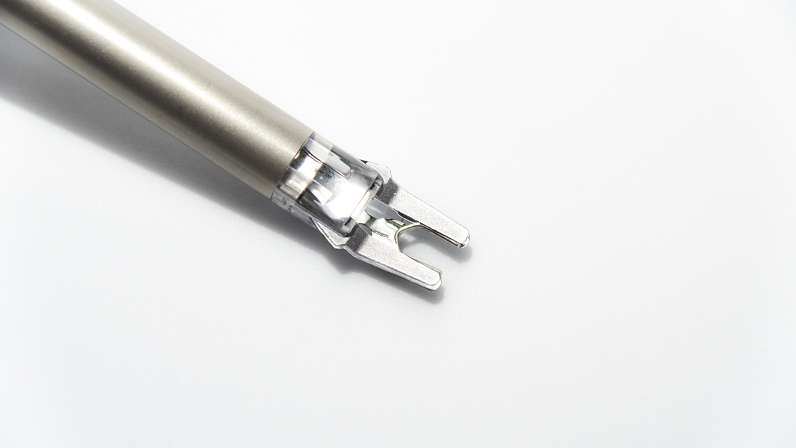

Jaw with a clip seated in the anti-drop structure, 10 mm instrument.
Jaw with clip seated in the anti-drop structure.
02

Clip Applier 5 mm

5 mm shaft · M/L clips

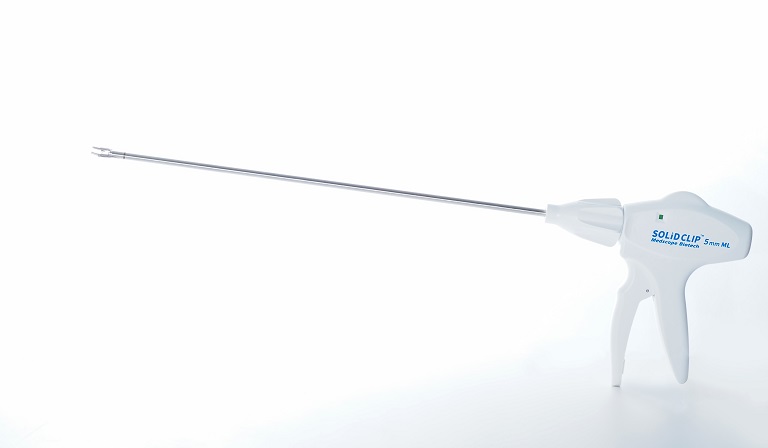

Clip Applier 5 mm, full instrument.

The same clip applier on a 5 mm shaft, 330 mm working length, in two preloaded clip counts.

Shaft
5 × 330 mm
Clip size
M/L
Capacity
10 or 15
Configurations
2

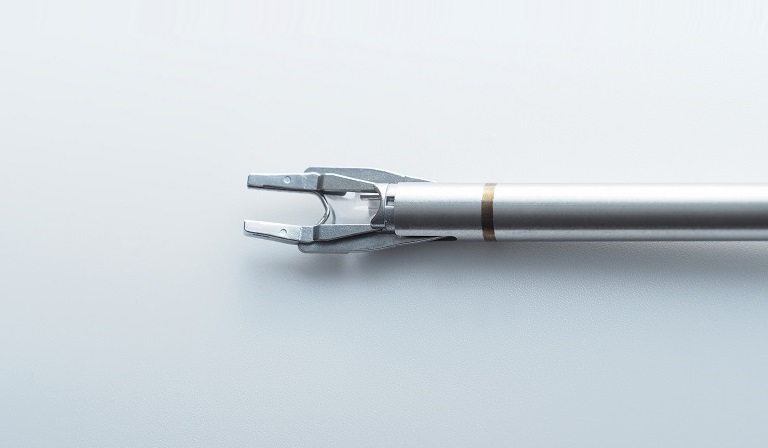

Open jaw with the clip held in the anti-drop structure, 5 mm instrument.
Open jaw with the clip held in the anti-drop structure.

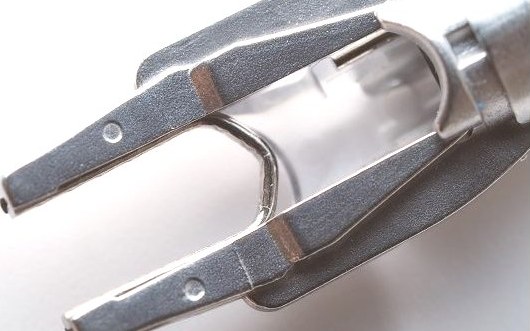

Open jaw, 5 mm instrument.
Open jaw.

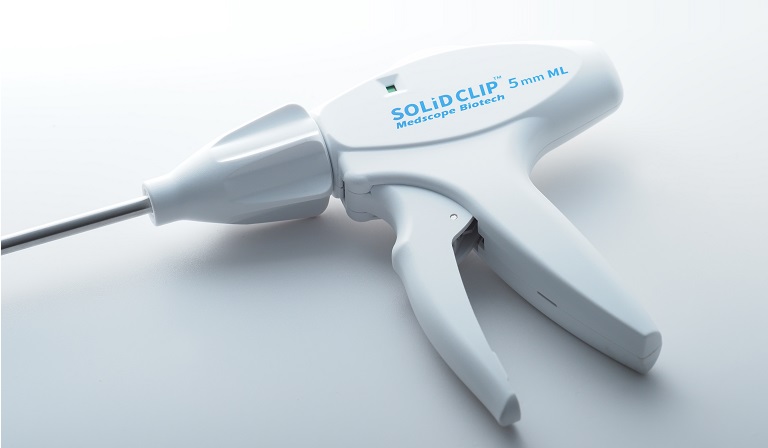

Handle and counter window, 5 mm instrument.
Handle and counter window.

Available models

All configurations are single-use and supplied 5 pcs/box, 4 boxes/carton.

CodeSpecificationShaftClips
10 mm shaft
CA-165Single-use, L size10 × 330 mm10
CA-166Single-use, L size10 × 330 mm15
CA-167Single-use, M/L size10 × 330 mm15
CA-168Single-use, M/L size10 × 330 mm20
CA-169Single-use, M/L size10 × 330 mm10
5 mm shaft
CA-567Single-use, M/L size5 × 330 mm10
CA-568Single-use, M/L size5 × 330 mm15

Documentation

Download material

SOLiD CLIPProduct brochure · PDF Clip Applier 10 mmInstructions for use · PDF Clip Applier 5 mmInstructions for use · PDF
laprovue fritl
#982568
Laparoscopy

LaparoVue – VueTip

LaparoVue – VueTip

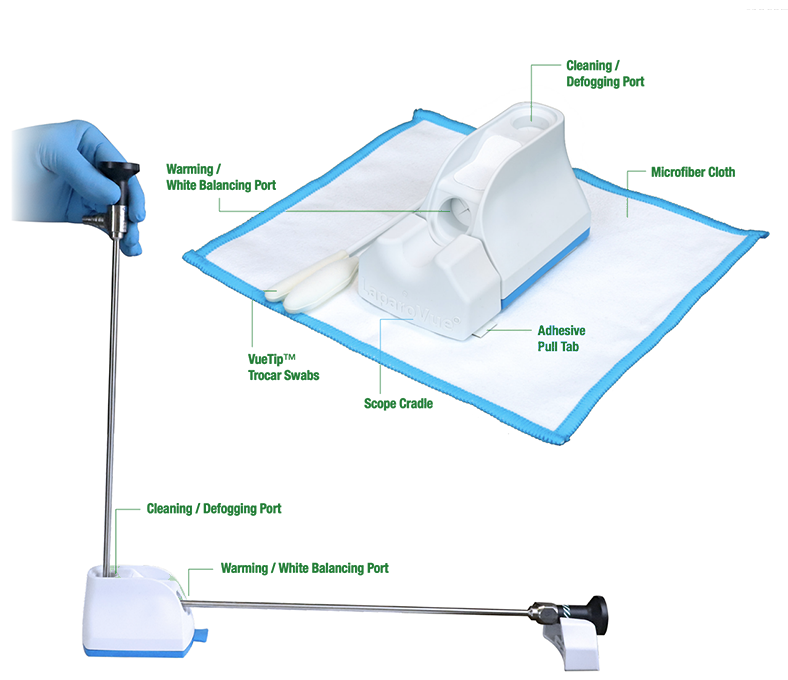

LaparoVue Visibility System. Understanding a surgeon’s need to see clearly during laparoscopic surgery, LaparoVue is an all-in-one solution designed to reduce the complexity of optimal visualization. LaparoVue is an easy to use, disposable multi-purpose device that warms, white balances, cleans and defogs, without the need to buy multiple products.

Product Features & Benefits Warms & White Balances

  • Warms scope in 5 minutes to prevent fogging.
  • Unit warms up to 5 hours.
  • Allows for white balancing.

Cleans

  • Provides crisp, clear view in 5 seconds.
  • Radiopaque VueTip™ Trocar Swabs remove debris and excess liquid from trocar cannula.
  • X-ray detectable Microfiber Cloth designed to capture residue/particulates.

Defogs

  • Pre-filled warming solution helps prevent intra-operative scope fogging.

One Unit, Two Ports

  • Two ports: warming/white balancing and cleaning/defogging.
  • Allows for second scope to be warmed and ready during surgery.
  • Fits 3mm – 12mm scopes without a port size converter.

Detached Scope Cradle

  • Safely and securely supports scope.
  • Reduces tension on lens and potential for damage.

Ergonomic Design

  • Stable base prevents tipping.
  • Contoured, easy grip profile.
  • Engineered with soft silicone material.

LaparoVue Brochure cloth
Contact us

Anti-Fog Kit

  •

Water-based solution reduces fogging of scopes. Includes adhesive backed sponge with radiopaque ribbon.

  •

Related products

  •
Product

, , ,

A laparoscopy is a minimally invasive procedure that looks inside your stomach or pelvis
